EPZ Inc - 2262 Calle del Mundo, Santa Clara, CA.95054 Custom Fabricated Polypropylene Plating Tanks, 2262 Ca

For Sale: Custom Plating Tanks – Polypropylene & Stainless Steel | Fabricated to Spec

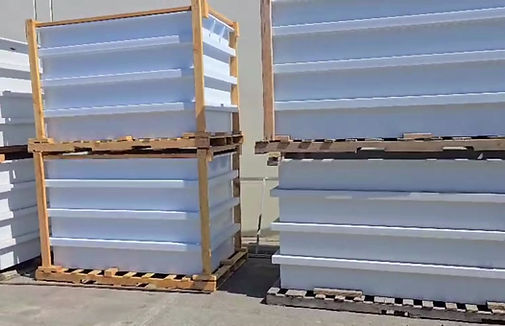

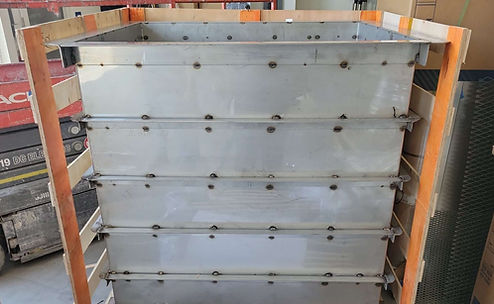

Plating tanks made to your specifications
Send us print via email
Made From Polypropylene Homopolymer sheets or 316 Stainless Steel
Can Fabricate accessories for plating tanks such as covers, equipment container, etc...
Local Pick-up or Shipping (Contact us for rates via email)
Contact Us via Email for further details

For Sale: Plater’s Wire – Annealed Copper, Aluminum & Galvanized Steel | Bulk Spools

wire for reliable electrical connections in metal finishing operations
Available in annealed copper, aluminum, and annealed galvanized steel for various plating line needs.
Ideal for rack fabrication, cathode connections
Sold by the spool — bulk pricing available for larger quantities
Available Options & Specs:
- Annealed Copper Wire:
  - Sizes: 12 AWG & 16 AWG
  - Price: $322 per spool (approx. 28 lbs per spool)
- Aluminum Wire:
  - Size: 12 AWG
  - Price: $120 per spool (approx. 18 lbs per spool)
- Annealed Galvanized Steel Wire:
  - Size: 18 AWG
  - Price: $40 per spool (approx. 9.5 lbs per spool)
Local Pick-up or Shipping (Contact us for rates via email)
Contact Us via Email for further details

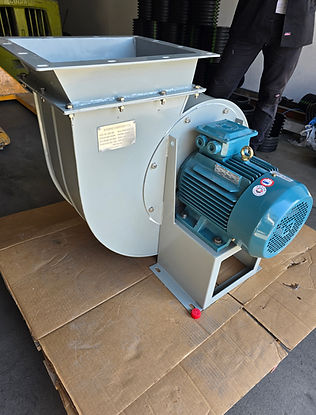

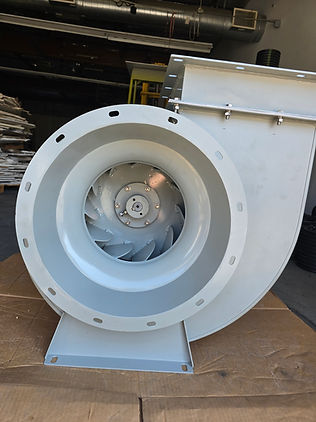

For Sale: 5HP Exhaust Blower Fan – Tnemec Coated | Chemical & Acid Fume Resistant ($3,450)

Industrial-grade exhaust blower fan built for harsh plating and metal finishing environments
Features Tnemec Coating Series 282, providing outstanding chemical and solvent resistance.
Ideal for exhausting aggressive acidic fumes, including sulfuric, hydrochloric, and nitric acid vapors.
Heavy-duty mild steel housing and centrifugal wheel, fully coated inside and out for extended service life.
Specifications:
- Motor: AC 460V, 60Hz, 3 Phase
- Power: 5HP (4kW)
- Current Draw: 6.5 Amps
- RPM: 3,450
- IP Rating: IP54 – dust and splash resistant
- Air Flow: 5,475 – 6,432 CMH
Inlet Dimensions:
- 15-3/4" Inner Diameter | 17-5/16" Outer Diameter
Outlet Dimensions
- Length: 19-11/16" Inner | 20" Outer
- Width: 10-7/8" Inner | 13-5/8" Outer
Local Pick-up and Shipping (Contact us for rates via email)
Contact Us via Email for further details

For Sale: Custom GR2 Titanium Stud Bolts – Double Ended with Washers & Nuts | Plating Racking Hardware

Grade 2 Titanium double-ended stud bolts, washers, and nuts custom made to your specifications.

Send us your Prints or Samples
Designed for secure, corrosion-resistant connections in harsh plating and metal finishing environments.
Perfect for racking parts securely for anodizing, plating, or other finishing processes.
Made to order send us your detailed prints or physical samples for precise fabrication.
Engraving not included by default (available upon request).
Minimum Order Quantity (MOQ): 100 pieces per unit
Applications:
- Hard anodizing
- Custom racking setups for various metal finishing processes
- Chemical processing fixtures
- Electroplating
Local Pick-up or Shipping (Contact us for rates via email)
Contact Us via Email for further details

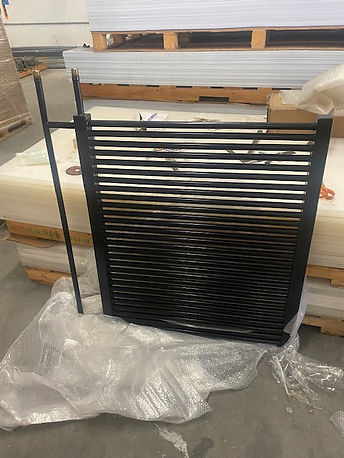

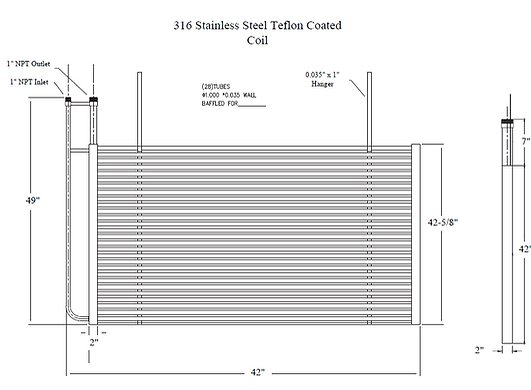

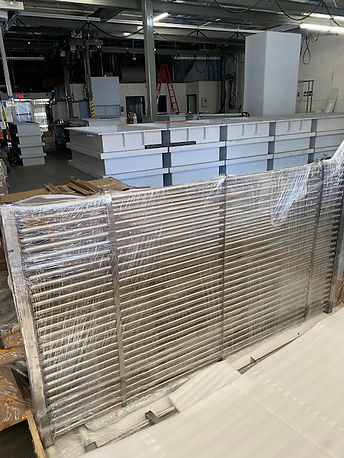

For Sale: Custom Refrigeration Coils – Zirconium & Stainless Steel | Plating Tank Cooling

Ideal for cooling hard anodize tanks, nickel plating baths, and temperature-sensitive finishing processes.
Fabricated to your exact specifications to fit new or existing tanks.
Available in Zirconium, Stainless Steel, and other corrosion-resistant materials.
Local Pick-up or Shipping (Contact us for rates via email)
Contact Us via Email for further details

For Sale: Custom Immersion Heaters – Titanium, Stainless, Teflon Coated & Quartz | Plating Tank Heating

built immersion heaters designed for consistent, reliable temperature control in plating tanks.
heaters and temperature control boxes made to your specifications.
Available in Titanium, Stainless Steel, Teflon Coated, or Quartz to handle a wide range of plating chemistries and corrosive solutions
Send us print via email
Available heaters made from Titanium, Stainless Steel, Teflon Coated, and Quartz
Local Pick-up or Shipping (Contact us for rates via email)
Contact Us via Email for further details
